Product Code: HOCL-4

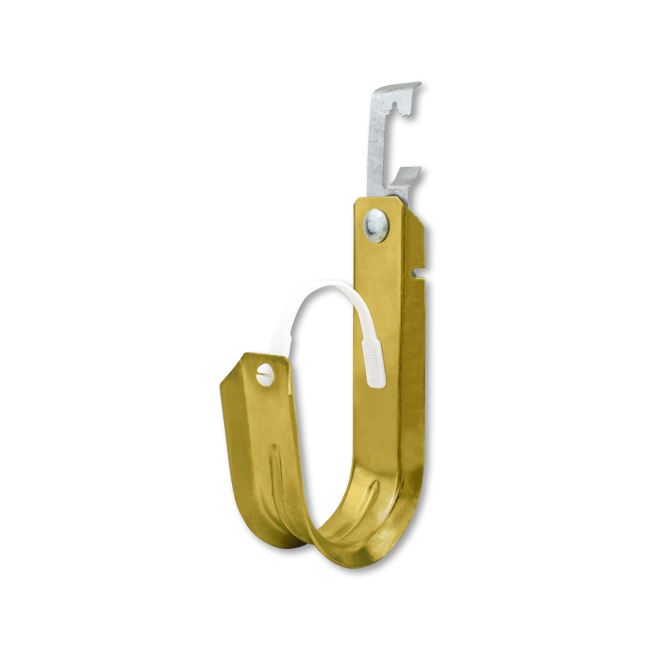

Doc’s® Cable Supports provide support for all data comm and low voltage cables.
The cable support includes a spring steel Bat Wing clip that allows you to attach the hook to 12 gauge wire or threaded rod up to 1/4” in diameter.
| Product Code | Size | Load Capacity | Support Capacity |
|---|---|---|---|
| JH-12W | 3/4" | 17 lbs. | Capacity to hold up to 16 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 10 CAT 6 cables. |
| JH-21W | 1 5/16" | 17 lbs. | Capacity to hold up to 50 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 32 CAT 6 cables. |
| JH-32W | 2" | 17 lbs. | Capacity to hold up to 80 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 50 CAT 6 cables. |
| JH-64W | 4" | 33.3 lbs. | Capacity to hold up to 300 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 185 CAT 6 cables. |

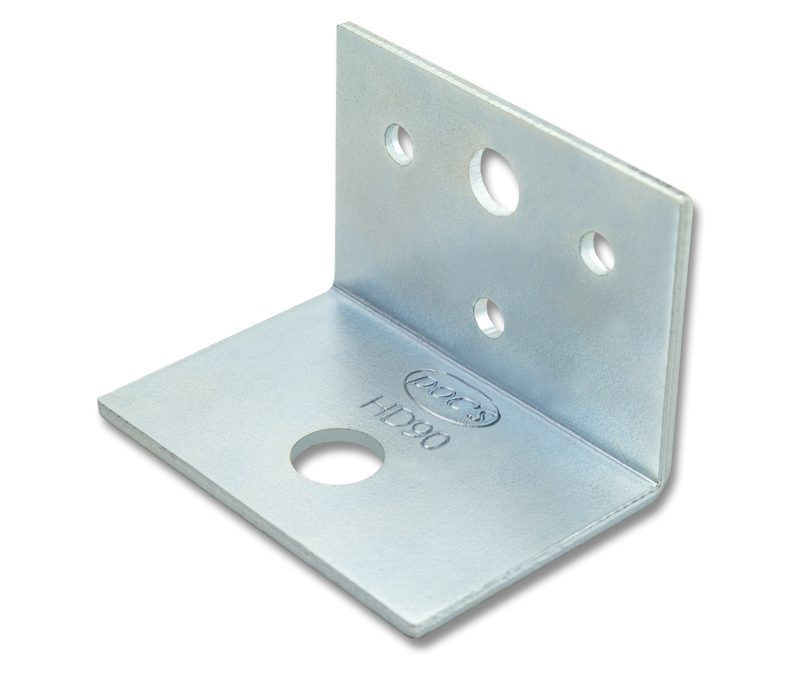

The HD90 is a seismic splay clip for metal decking & lightweight to normal weight concrete applications.
The 3 X 1/4″ holes of the HD45 can be used with #8 or #10 self-tapping screws to be installed into a variety of decking configurations.
The ½” hole can be use with a ½” expansion anchor or concrete screw with ceiling wire tied to the 3/8” hole.
The 3/8” hole can be used with a 3/8” expansion anchor or concrete screw with ceiling wire tied to the 1/2″ hole.
Product Code: HD90

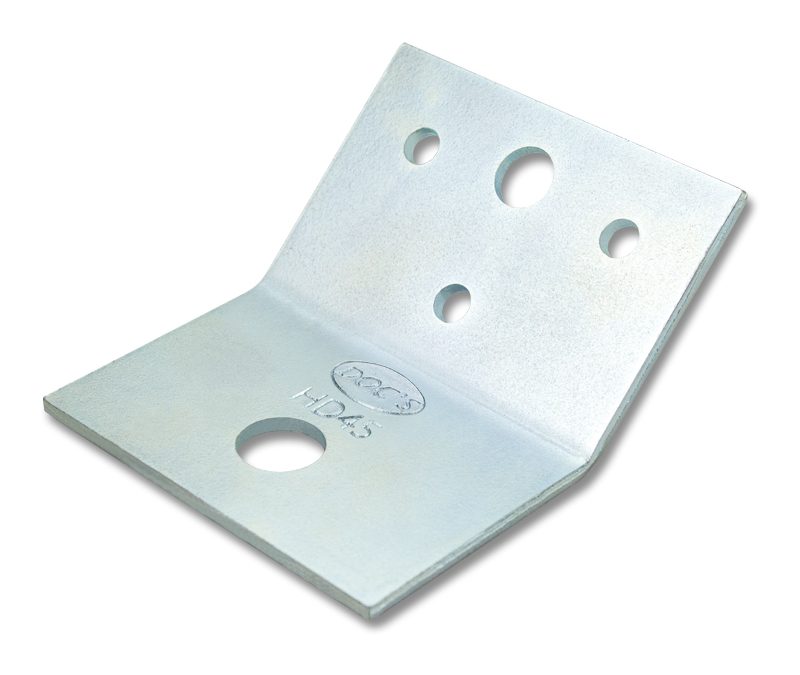

The HD45 is a seismic splay clip for metal decking & lightweight to normal weight concrete applications.
The 3 X 1/4″ holes of the HD45 can be used with #8 or #10 self-tapping screws to be installed into a variety of decking configurations.
The ½” hole can be use with a ½” expansion anchor or concrete screw with ceiling wire tied to the 3/8” hole.
The 3/8” hole can be used with a 3/8” expansion anchor or concrete screw with ceiling wire tied to the 1/2” hole.
Product Code: HD45
