HPHW J Hook

HPH J-Hooks are specially designed to provide optimum support for high speed data cable, such as Cat 5e, Cat 6, Cat 6A, Cat 7 and fiber optic.

We use a hybrid of metal and plastic components to offer the best of both worlds. The plastic component provides a two inch wide base support with a slick and burr free surface. The metal component provides a strong backbone. The combined J-Hook is UL listed, RoHS compliant, TIA compliant and is suitable for installation in plenum and air handling spaces.

One of the most innovative features of the HPH J-Hook is the built-in snap-lock retainer. This is far superior to clumsy retainer wires, cable ties or Velcro straps that require additional on-site installation.

Bend radius is an important factor in any high speed data cable installation. HPH J-Hooks offer the largest bend radius available at an average of 3.57 inches.

Consult with the cable manufacturer for proper installation guidelines.

VIDEOS

FEATURES

Built-in snap lock latch
TIA compliant
Plenum rated
cULus listed attachments

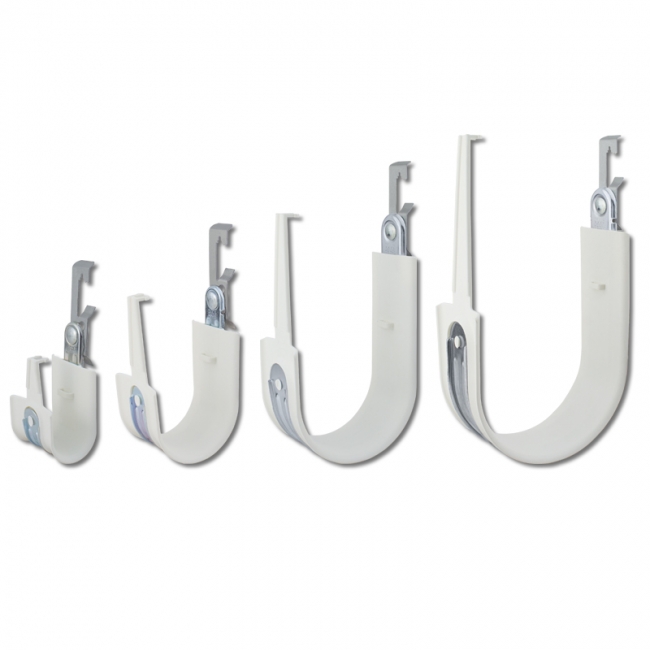

Available in 1”, 2”, 3” & 4”
Available in blue, red and black
Assemble to Doc’s® attachments with a 1/4″-20 x 3/8″ bolt and nyloc nut

SPECS

CABLE CAPACITIES:

Part No.	Area	Hook Diameter	CAT 5e Capacity	CAT 6 Capacity	Cat 6a Capacity

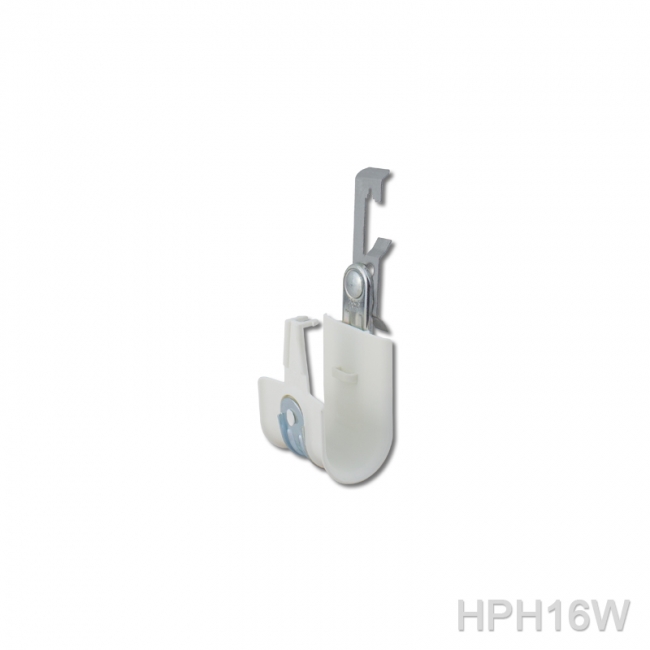

HPH16W	1.07 in2	1”	20	15	10
HPH32W	3.97 in2	2”	90	60	35

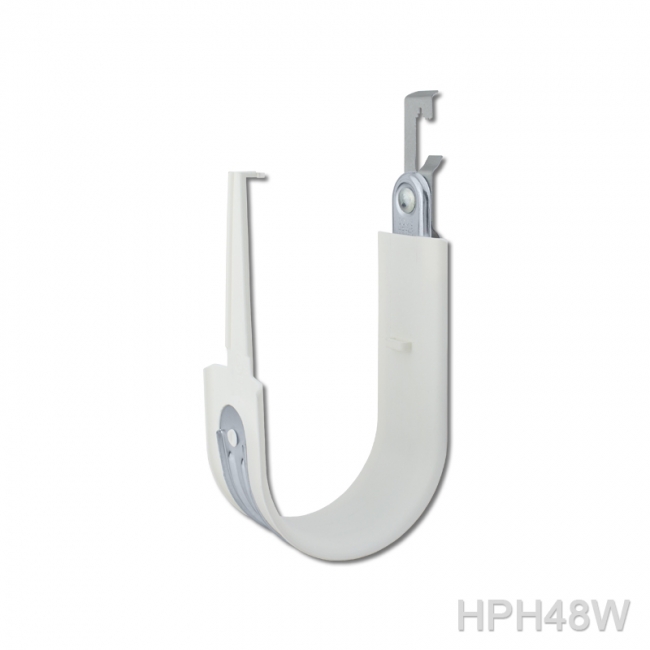

HPH48W	9.26 in2	3”	200	150	80
HPH64W	15.48 in2	4”	330	220	140

Cable capacity is calculated based on a 70% fill rate.
Actual capacity may vary due to CAT cable outside diameter variances by type and manufacturer.
Consult with the cable manufacturer to insure the correct cable outside diameter is being used during calculations.

UL LOAD RATINGS – INCLUDES 3 TO 1 SAFETY FACTORS:
