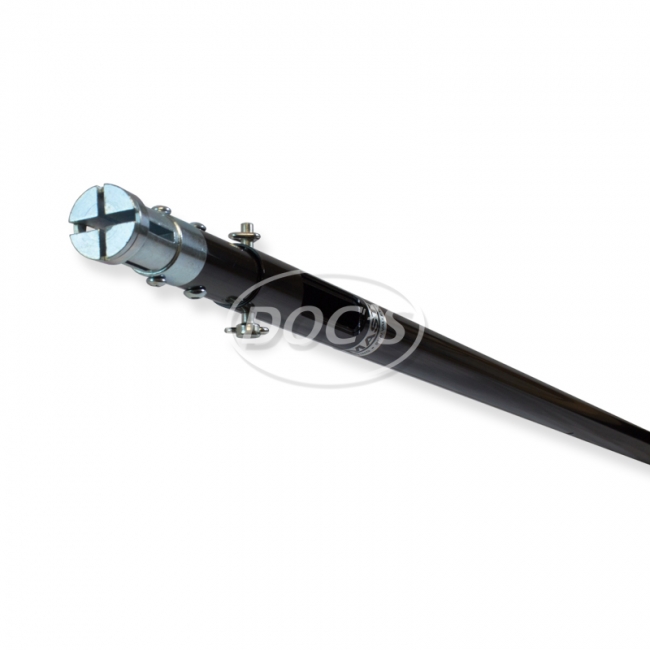

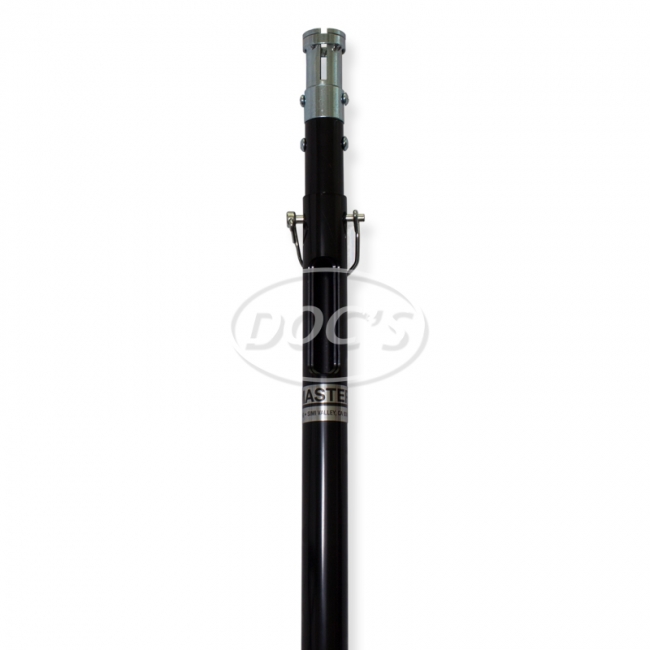

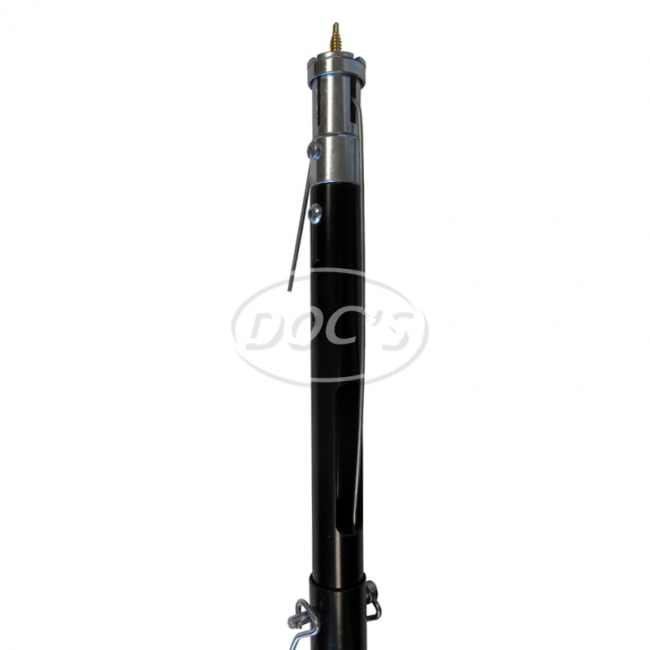

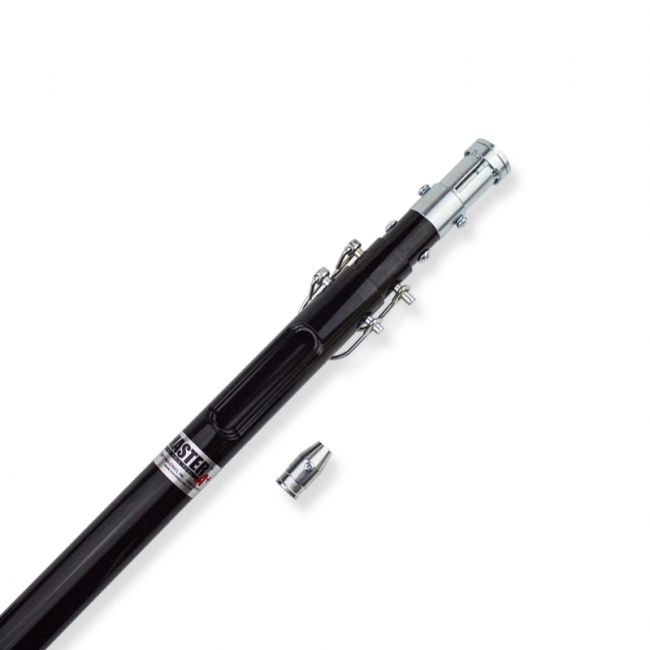

The Lagmaster® Acoustical Plus is an improvement on the original Lagmaster® . It utilizes interchangeable plug-in heads to convert the tool to suit multiple applications with ease. The Lagmaster® A+ comes with three heads, the LMP Base, LMP Wire Plug W (Welded) and LMP 1/4 Hex Plug. Install threaded rod, ceiling wire or use the pole as an extended nut driver with the 1/4 Hex Plug.
WARNING: AVOID POWER LINES – maintain a minimum of 10 ft. (3m) from all electrical lines.

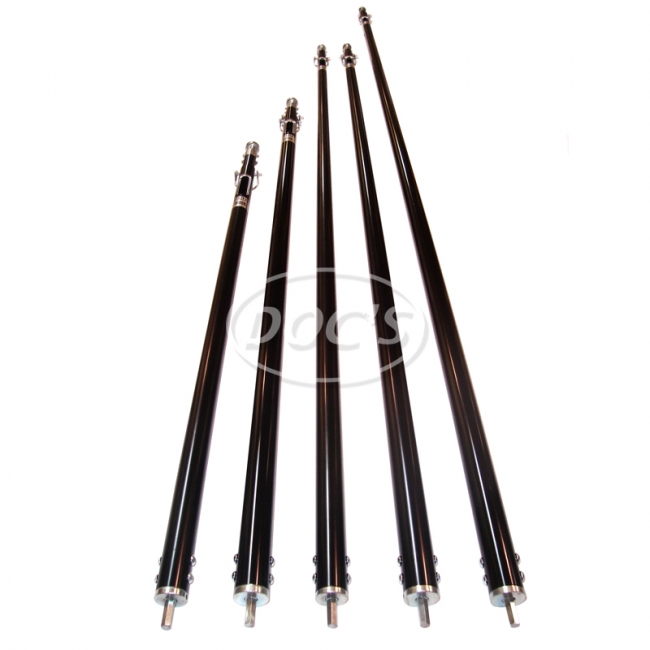

| Product Code | Collapsed Length | Extended Length | Stages | Shipping Weight |
|---|---|---|---|---|
| LMAP-6 | 3' 6" | 5' 6" | 2 | 4 |
| LMGAP-12 | 4' 6" | 10' 9" | 3 | 6 |
| LMAP-12 | 6' 6" | 11' 8" | 2 | 6 |
| LMAP-18 | 7' 5" | 17' | 3 | 7 |
| LMAP-24 | 8' 7" | 23' 3" | 3 | 9 |
VIDEOS
Lagmaster® Acoustical Plus instruction and demonstration:
Hanging Ceiling Wire
Installing Hangermate Screws
Adjusting Lagmaster® Pole
Cloganodo Alambre Lagmaster®
FEATURES
- All-in-one patented plug-in system allows you to install multiple types of fasteners to a variety of ceiling structures
- Includes: LMP Base, LMP Wire Plug W (Welded) and LMP 1/4 Hex Plug
- Perfect for applications that are unfit for scissor lifts such as stairwells or in between T-bar
- Improves safety by keeping your employees on the ground
- Black anodized aircraft grade aluminum
- Lightweight and durable
- Made in USA
PARTS
LMP Base
LMP Wire Plug W
Welded
LMP 1/4 Hex Plug
LM Driver – Large
Three Stage Poles
LM Driver – Small
Two Stage Poles
LM Stud
Wire Bale Pin
Button Head Screws
| Item #: | Description: |
|---|---|
| LMP Base | Lagmaster ® Plus Base – Female receiver, accepts all LMP Plugs – Features recessed 1/2″ female hex socket for Hangermate screws |
| LMP Wire Plug W (Welded) | Lagmaster®Plus Wire Plug - Welded version - Hangs & wraps 12GA ceiling wire attached to an I-LAG™ screw |
| LMP 1/4 Hex Plug | Lagmaster® Plus ¼” Hex Plug – 1/4" drive socket - Accepts standard ¼” hex bits |
| LM Driver - Large | Lagmaster® Driver – For use with three stage poles (LMGAP-12, LMAP-18, LMAP-24) |
| LM Driver - Small | Lagmaster® Driver – For use with two stage poles (LMAP-6, LMAP-12) |
| LM Stud | Lagmaster® Stud – 3/8" Hex shaft - component of LM Drivers |
| Wire Bale Pin | Lagmaster® Wire Bale Pin |
| Button Head Screws | Lagmaster® Button Head Screws - 1/4"-28 threads - Secures LM Head and LM Drivers |
PARTS SOLD SEPARATELY
LMP Wire Plug-SS
LMP Pre-Wrap Plug
LMP Keyless Chuck
LMP 1/2 Square
LMP 3/8 Plug
LMP 5/8 Plug
LMP 5/8 Vertigo
LMP 9/16 Plug
LMP BT
LMP 1/2 NPT Plug
LMP Viper Plug
LMP Purlin Plug
| Item #: | Description: |
|---|---|
| LMP Wire Plug SS (set screw) | Lagmaster® Plus Wire Plug - Set screw version - Hangs & wraps 12GA ceiling wire, jack chain or braided wire attached to an I-LAG™ screw |
| LMP Pre-Wrap Plug | Lagmaster® Plus Pre-Wrap Plug – Installs I-LAG™ screws pre-tied to 12GA ceiling wire |
| LMP 1/2 Square Plug | Lagmaster® Plus ½" Square Plug - 1/2" male socket adapter – Accepts standard 1/2” sockets. |
| LMP Keyless Chuck Plug | Lagmaster® Plus Keyless Chuck Plug - Keyless chuck adapter for use with drill bits and hex bits |
| LMP 3/8 Plug | Lagmaster® Plus 3/8” Plug – Open ended 3/8" hex socket - Installs Elco screws pre-attached to 1/4" or 3/8" threaded rod |
| LMP 5/8 Plug | Lagmaster® Plus 5/8" Plug – Open ended 5/8" hex socket - Installs Sammy screws pre-attached to 1/4" or 3/8" threaded rod |
| LMP 5/8 Vertigo Plug | Lagmaster® Plus 5/8" Vertigo Plug - Open ended 5/8" hex socket - Installs Powers Vertigo screws pre-attached to 1/4" or 3/8" threaded rod |
| LMP 9/16 Plug | Lagmaster® Plus 9/16" Plug – Open ended 9/16" hex socket - For setting 3/8" wedge anchors or concrete screws |
| LMP BT Plug | Lagmaster® Plus Broom Thread Plug – Universal broom thread adapter for sanders, dusters, light bulb changers etc. |
| LMP 1/2 NPT Plug | Lagmaster® Plus ½” National Pipe Thread Plug – Threaded adapter for Doc's® HOIT-AL joist clip installation tool |
| LMP Viper Plug | Lagmaster® Viper Plug - Threaded adapter for Viper 2, Viper 3 and Powers Sniper |
| LMP Purlin Plug | Lagmaster® Plus Purlin Plug – Hangs & wraps 12GA ceiling wire to "C" & "Z" Purlin/Joist clips |
