Offset Hanger Support Angle Clip

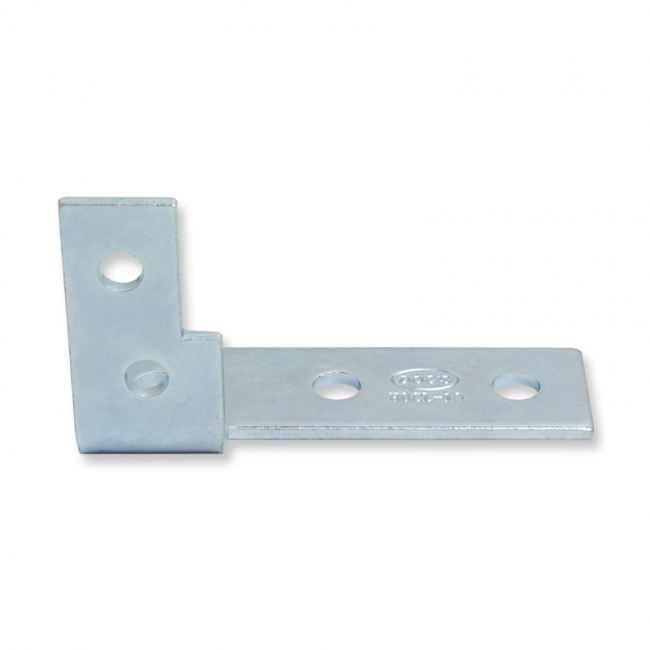

The HOCL-10 is a 12 gauge offset hanger support angle clip. It is 1″ wide at the widest point and ¾” wide at the narrowest point.

It has a 2″ drop down leg with two offset 1/4″ holes and three 21/64″ holes that are approximately 1″ apart on the longer 3.5″ leg.

Designed specifically for use with Doc’s HPHTS, HPHRS, HPHTL and HPHRL.

Product Code: HOCL-10

PRODUCT SPECS

12 Gauge Steel
2″ drop down leg with 2 X offset 1/4″ holes
3 X 21/64″ holes that are about 1″ apart on the longer 3.5″ leg
RoHS Complaint Eco-friendly Zinc plating
Recommended for indoor applications

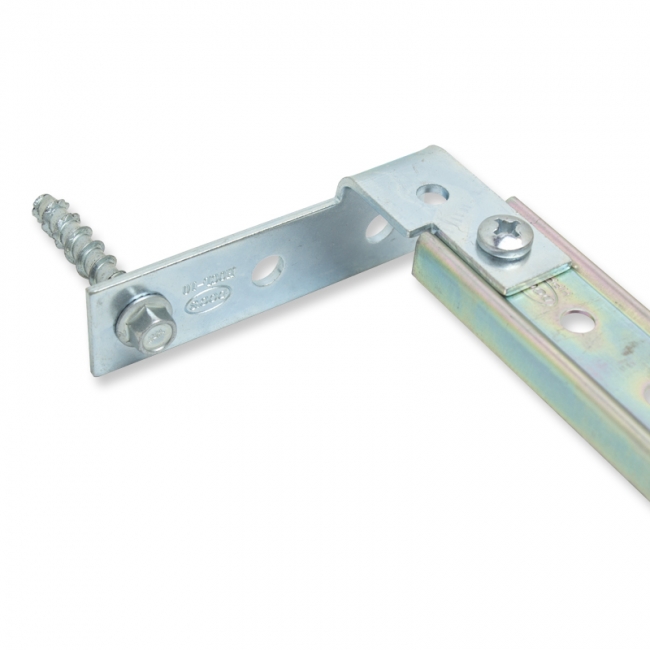

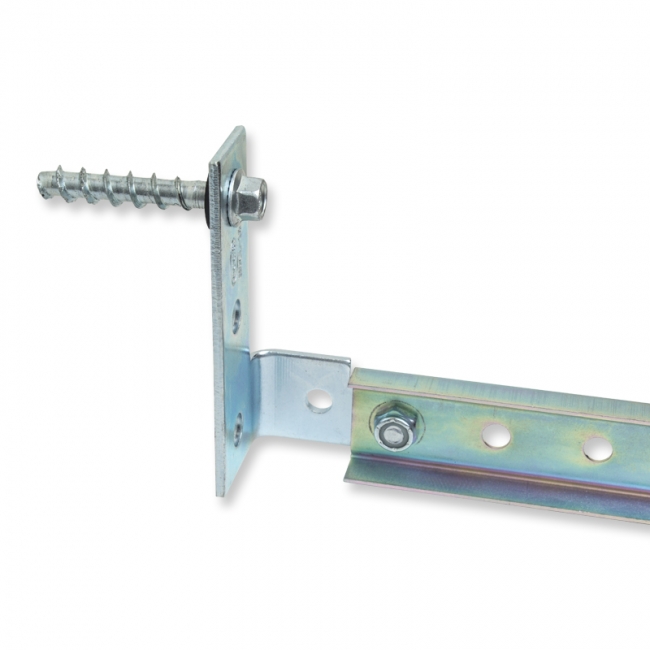

Variety of other uses including as an attachment to J-Hooks, conduit, pipes & more!

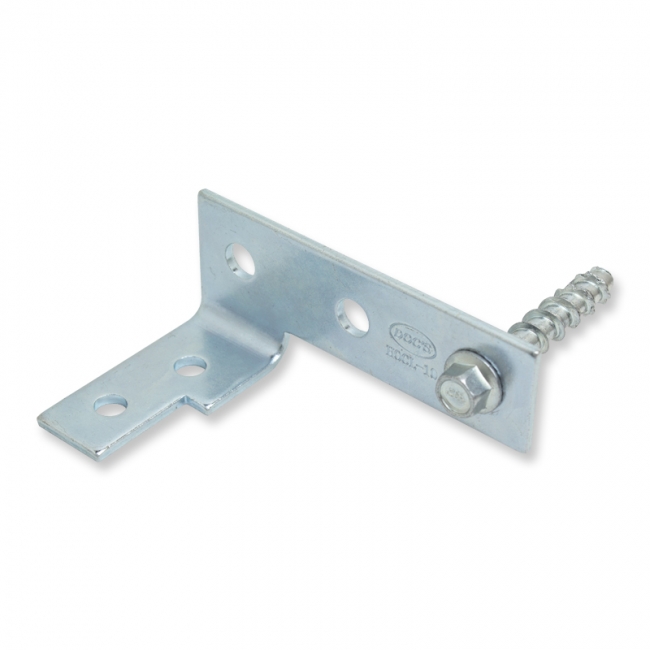

Designed for use with ¼” or 5/16″ fasteners such as machine screws, concrete screws and wedge anchors or #8 – #14 framing screws.
Sold in boxes of 100
Box weight: 16 lbs.
Box dimensions: 9.5″ x 4.5″ x 4″

DOCUMENTATION

MSDS SDS DATA SHEET

SUBMITTAL REQUEST
