The Lagmaster® Plus is the ultimate all-in-one pole tool. Specifically designed for use in the Acoustical Ceiling, Data Comm, Fire Sprinkler, HVAC and Electrical Industries. Built to withstand the rigors of daily use on the job site.
WARNING: AVOID POWER LINES – maintain a minimum of 10 ft. (3m) from all electrical lines.
The Lagmaster® Plus features a unique all-in-one patented plug-in system which allows you to install multiple types of fasteners to a variety of overhead structures and surfaces.
Use the Lagmaster® Plus to install ceiling wire, jack chain, pre-assembled threaded rod, smooth rod and a variety of other fasteners, safely from the ground.

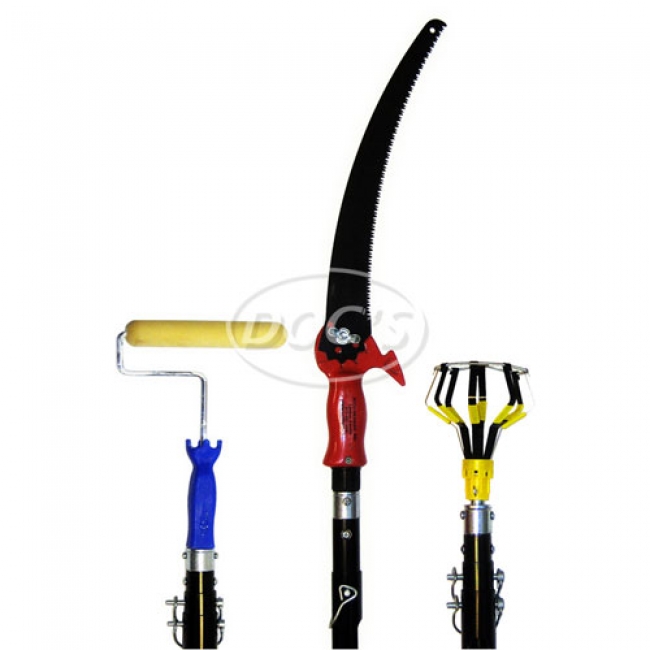

Pair the Lagmaster® Plus Broom Thread Plug-in with any female broom thread attachment. Such as tree trimming saws, dusters or sanders!
Power the pole with any 3/8″ or 1/2″ drill.
| Product Code | Collapsed Length | Extended Length | Stages | Shipping Weight |
|---|---|---|---|---|
| LMP-6 | 3' 6" | 5' 6" | 2 | 6 |
| LMGP-12 | 4' 6" | 10' 9" | 3 | 8 |
| LMP-12 | 6' 6" | 11' 8" | 2 | 8 |
| LMP-18 | 6' 7" | 17' | 3 | 10 |
| LMP-24 | 8' 7" | 23' 3" | 3 | 11 |
VIDEOS
Installing ITW Buildex Sammy Screws
Installing Powers Vertigo Screws
Lagmaster® Plus & Powers Sniper
Hanging Pre-Tied Wire
Lagmaster® Plus Universal Threaded Adaptor Plug
HOIT-AL Installation Video
Installing Hangermate Screws

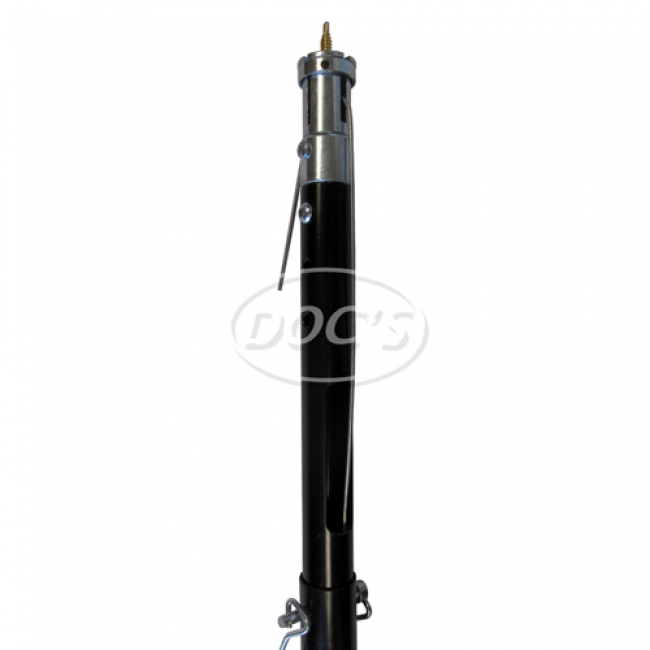

Hanging Ceiling Wire

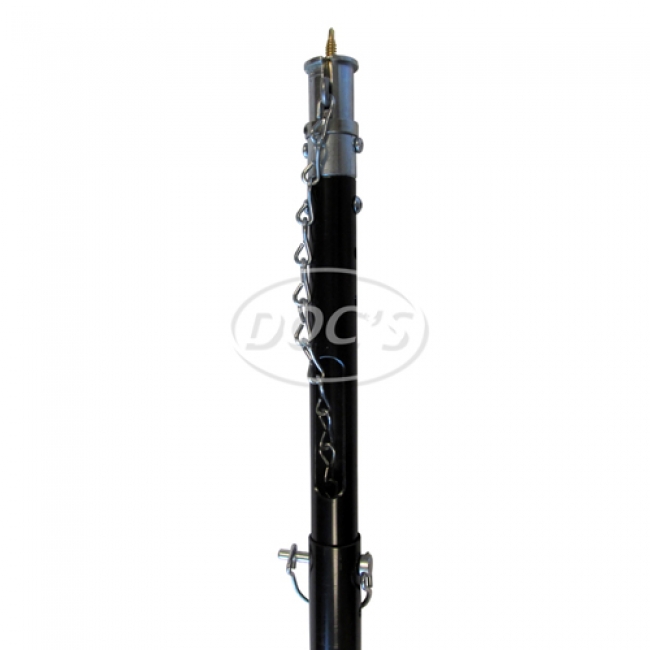

Hanging Jack Chain
FEATURES
- All-in-one patented plug-in system allows you to install multiple types of fasteners to a variety of ceiling structures
- Includes: LMP Base, LMP Wire Plug (set screw style), LMP Broom Thread, LMP 5/8 Plug, LMP 5/8 VERTIGO, LMP 1/2 Square Drive, LMP 1/4 Hex Plug, LMP Viper Plug, & LMP 1/2 NPT

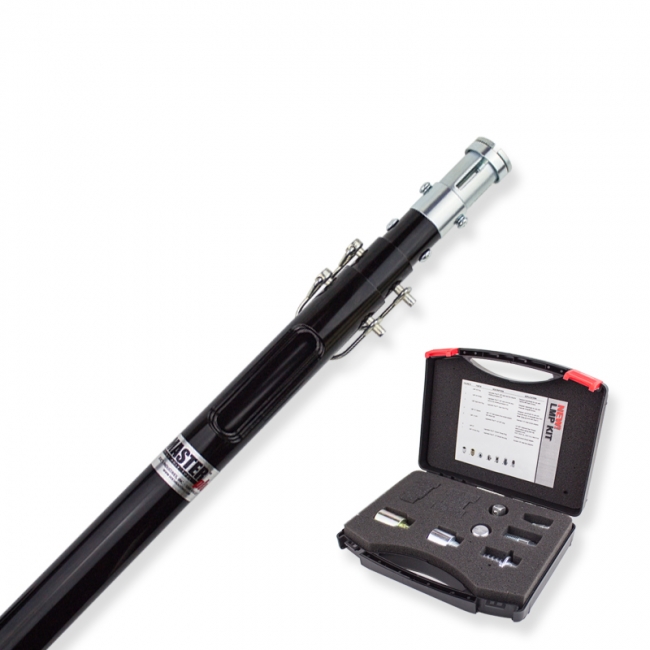

- Plug-in heads are kept securely in a plastic container with custom die cut foam
- Perfect for applications that are unfit for scissor lifts such as stairwells or in between T-bar
- Improves safety by keeping your employees on the ground
- Black anodized aircraft quality aluminum
- Lightweight and durable
- Made in USA
PARTS
LMP Wire Plug SS (set screw)
LMP Base
LMP 1/4 Hex Plug
LMP Viper Plug
LMP 5/8 Plug
LMP 5/8 Vertigo
LMP BT
LMP 1/2 Square
LMP 1/2 NPT
LM Driver Small
Two Stage Poles
LM Driver Large
Three Stage Poles
LM Stud
Wire Bale Pin
Button Head Screws
| Item #: | Description: |
|---|---|
| LMP Base | Lagmaster® Plus Base – Female receiver, accepts all LMP Plugs – Features recessed 1/2″ female hex socket for Hangermate screws |
| LMP Wire Plug SS | Lagmaster® Plus Wire Plug – Set screw version – Hangs & wraps 12GA ceiling wire, jack chain or braided wire attached to an I-LAG™ screw |
| LMP BT Plug | Lagmaster® Plus Broom Thread Plug – Universal broom thread adapter for sanders, dusters, light bulb changers etc. |
| LMP 5/8 Plug | Lagmaster® Plus 5/8" Plug – Open ended 5/8" hex socket - Installs Sammy screws pre-attached to 1/4" or 3/8" threaded rod |
| LMP 5/8 Vertigo Plug | Lagmaster® Plus 5/8" Vertigo Plug - Open ended 5/8" hex socket - Installs Powers Vertigo screws pre-attached to 1/4" or 3/8" threaded rod |
| LMP 1/2 Square Plug | Lagmaster® Plus ½" Square Plug - 1/2" male socket adapter – Accepts standard 1/2” sockets |

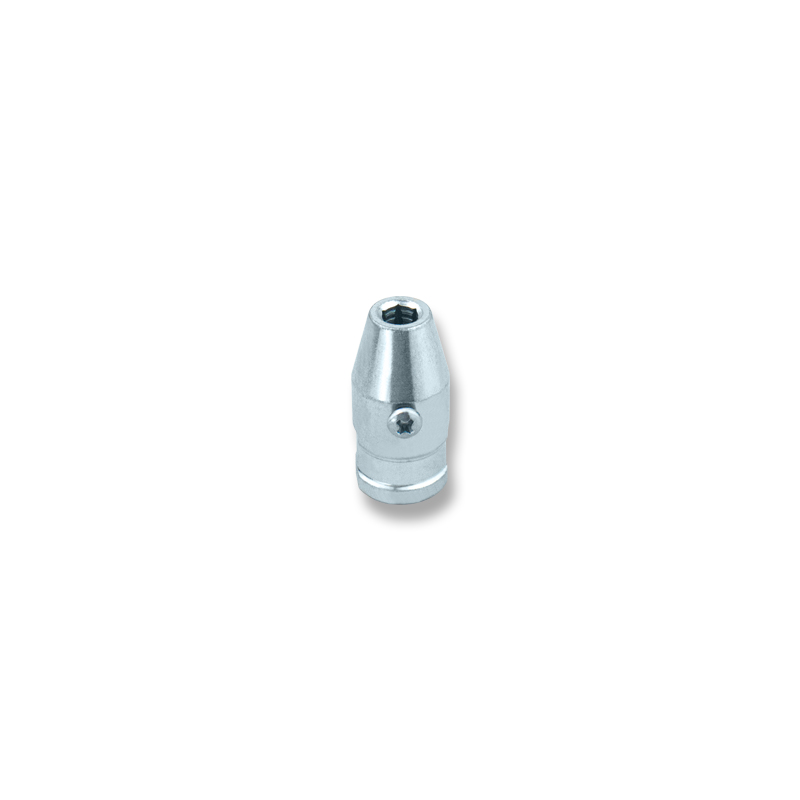

| LMP 1/4 Hex Plug | Lagmaster® Plus ¼” Hex Plug – 1/4" drive socket - Accepts standard ¼” hex bits |
| LMP Viper Plug | Lagmaster® Viper Plug - Threaded adapter for Viper 2, Viper 3 and Powers Sniper |
| LMP 1/2 NPT Plug | Lagmaster® Plus ½” National Pipe Thread Plug – Threaded adapter for Doc's® HOIT-AL joist clip installation tool |
| LM Driver - Large | Lagmaster® Driver – For use with three stage poles (LMGP-12, LMP-18, LMP-24) |
| LM Driver - Small | Lagmaster® Driver – For use with two stage poles (LMP-6, LMP-12) |
| LM Stud | Lagmaster® Stud – 3/8" Hex shaft - component of LM Drivers |
| Wire Bale Pin | Lagmaster® ® Wire Bale Pin |
| Button Head Screws | Lagmaster® ® Button Head Screws - 1/4"-28 threads - Secures LM Head and LM Drivers |
PARTS SOLD SEPARATELY
LMP Wire Plug W (welded)
LMP Pre-Wrap Plug
LMP Keyless Chuck
LMP Purlin Plug
LMP 9/16 Plug
LMP 3/8 Plug
| Item #: | Description: |
|---|---|
| LMP Wire Plug W (welded) | Lagmaster® Plus Wire Plug - Welded version - Hangs & wraps 12GA ceiling wire attached to an I-LAG™ screw |
| LMP Pre-Wrap Plug | Lagmaster® Plus Pre-Wrap Plug – Installs I-LAG™ screws pre-tied to 12GA ceiling wire |
| LMP Keyless Chuck Plug | Lagmaster® Plus Keyless Chuck Plug - Keyless chuck adapter for use with drill bits and hex bits - Chuck size is 0.8-10mm (0.031” -0.39”) |
| LMP Purlin Plug | Lagmaster® Plus Purlin Plug – Hangs & wraps 12GA ceiling wire to "C" & "Z" Purlin/Joist clips |
| LMP 9/16 Plug | Lagmaster® Plus 9/16" Plug – Open ended 9/16" hex socket - For setting 3/8" wedge anchors or concrete screws |
| LMP 3/8 Plug | Lagmaster® Plus 3/8” Plug – Open ended 3/8" hex socket - Installs Elco screws pre-attached to 1/4" or 3/8" threaded rod |
