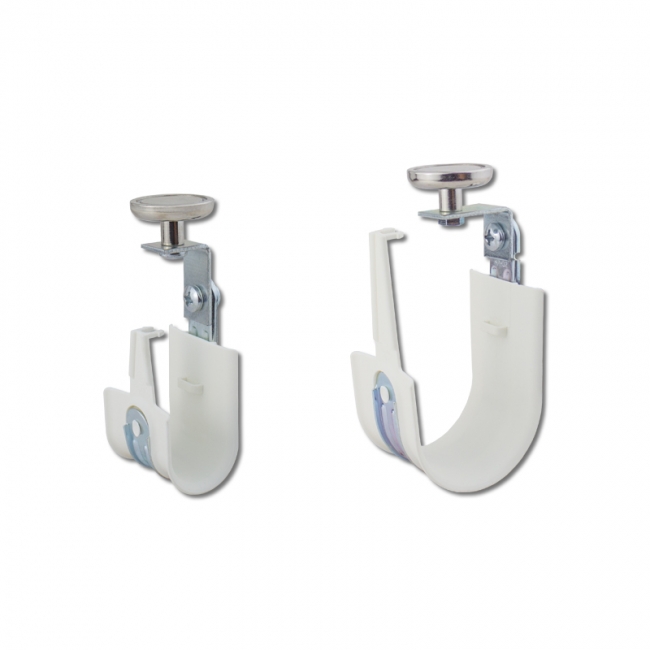

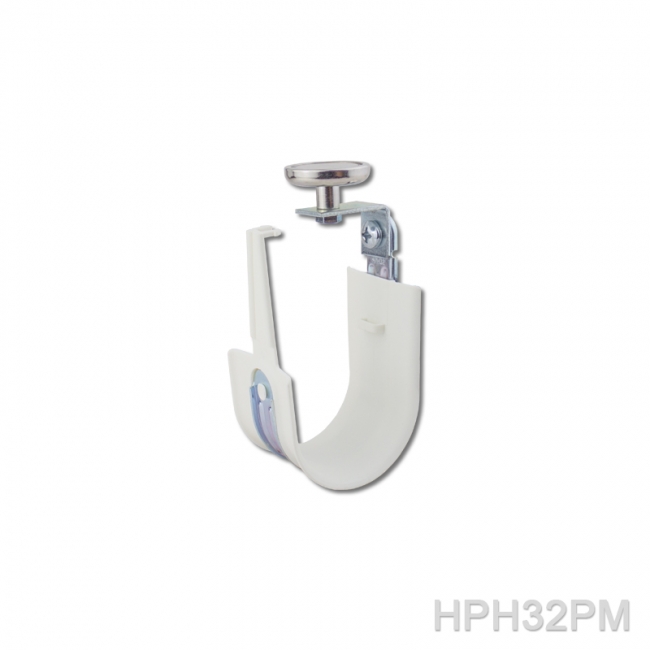

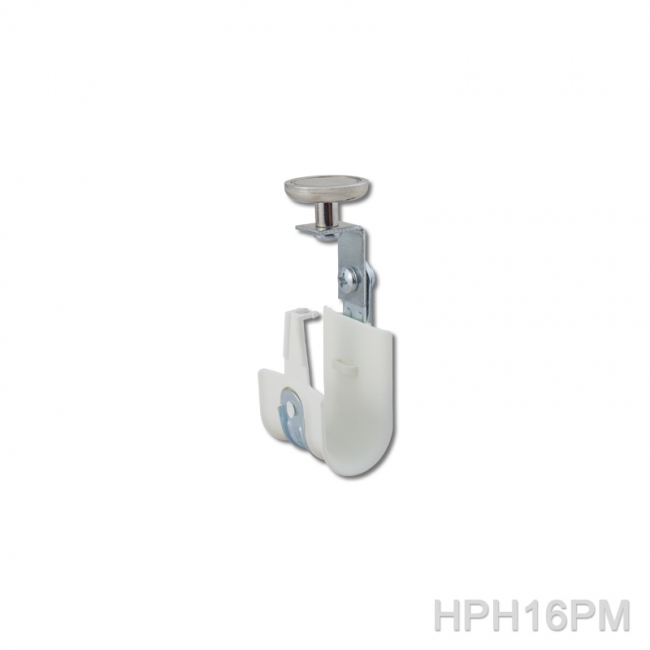

HPHPM Series J Hook

HPH J-Hooks are specially designed to provide optimum support for high speed data cable, such as Cat 5e, Cat 6, Cat 6A, Cat 7 and fiber optic.

We use a hybrid of metal and plastic components to offer the best of both worlds. The plastic component provides a two inch wide base support with a slick and burr free surface. The metal component provides a strong backbone. The combined J-Hook is UL listed, RoHS compliant, TIA compliant and is suitable for installation in plenum and air handling spaces.

One of the most innovative features of the HPH J-Hook is the built-in snap-lock retainer. This is far superior to clumsy retainer wires, cable ties or Velcro straps that require additional on-site installation.

Bend radius is an important factor in any high speed data cable installation. HPH J-Hooks offer the largest bend radius available at an average of 3.57 inches.

HPH J-Hooks are available pre-assembled to UL listed and RoHS compliant attachments, allowing for easy installation to a variety of structures and surfaces.

Consult with the cable manufacturer for proper installation guidelines.

Docs Pot Magnets (PM90) have a magnetic core made with neodymium, which is sunk in a steel pot in order to intensify the adhesive force of the magnet. That is why they are called “pot” magnets. They have a nominal breakaway strength of 90 pounds set by the factory. However, there are many factors that can influence the breakaway load, such as the composition and thickness of the base metal, the direction of the load whether mostly tension or shear, any coating on the base metal, the finish of the base metal and anything that effects the coefficient of friction between the magnet and the base metal. Therefore, it is a good idea to test each new application by setting the magnet and then giving it a tug to ensure that the breakaway strength is sufficient for your application.

VIDEOS


FEATURES

  • Rated breakaway strength is 90 lbs.
  • Built-in snap lock latch
  • TIA compliant
  • Plenum rated
  • Available in 1” & 2”
  • Available in blue, red and black

SPECS

CABLE CAPACITIES:
Part No.AreaHook
Diameter
CAT 5e
Capacity
CAT 6
Capacity
Cat 6a
Capacity
HPH161.07 in21”201510
HPH323.97 in22”906035
HPH489.26 in23”20015080
HPH6415.48 in24”330220140
Cable capacity is calculated based on a 70% fill rate.
Actual capacity may vary due to CAT cable outside diameter variances by type and manufacturer.
Consult with the cable manufacturer to insure the correct cable outside diameter is being used during calculations.

UL LOAD RATINGS – INCLUDES 3 TO 1 SAFETY FACTORS:

Part NoUL Load Rating
LBS.N
HPH162088.96
HPH321775.62
HPH482088.96
HPH641775.62

PACKAGE INFORMATION:

Part No.Package Qty.Package WeightUPC Code
HPH16253 lbs.707129861634
HPH32254 lbs.707129861825
HPH48259 lbs.707129861979
HPH642511 lbs.852668707483
