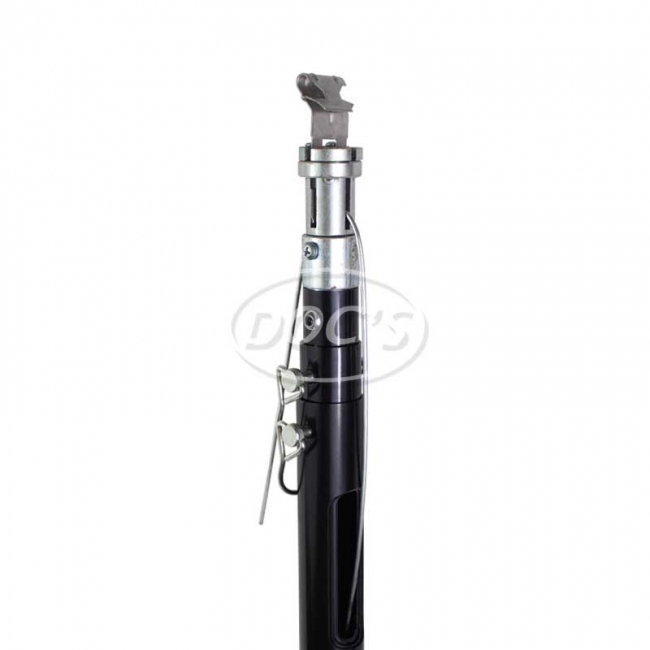

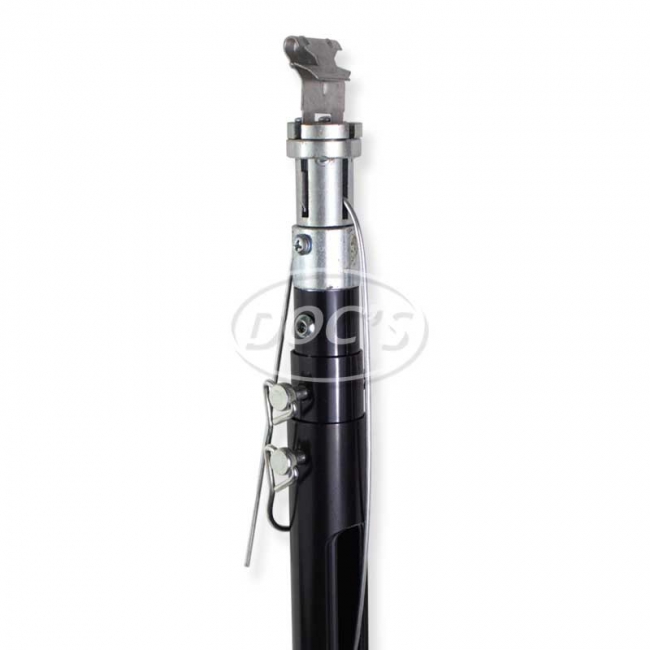

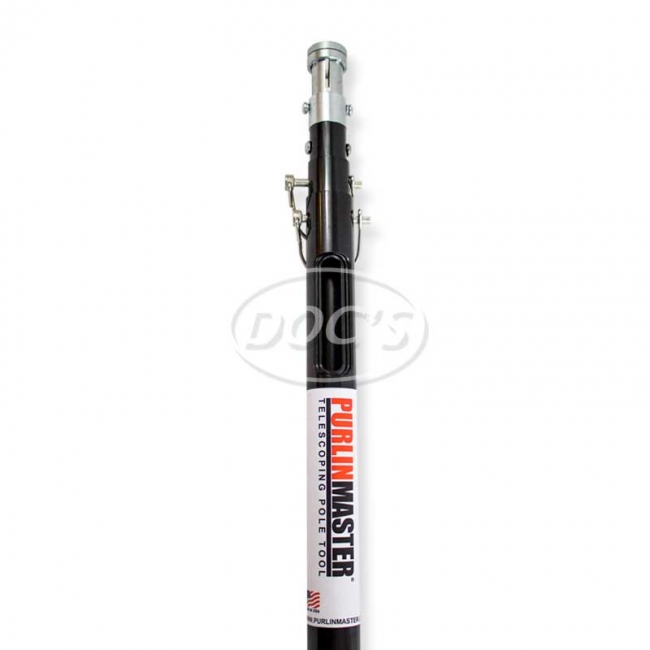

The PurlinMaster™ is a multi-purpose pole tool used to install purlin clips and wrap ceiling wire all in one motion from the ground. The patented purlin head makes it possible to install a purlin clip and then wrap a ceiling wire onto the clip using the same tool. The PurlinMaster™ also includes an interchangeable head that allows it to install any standard eye lag screw. There are several other interchangeable heads sold separately. Such as a 1/2″ male socket adapter, female adapter for ¼” hex bits, special heads for hanging threaded rod or jack chain and more!
Product Code | Collapsed Length | Extended Length | Stages | Shipping Weight |
---|---|---|---|---|
PM-6 | 3' 6" | 5' 6" | 2 | 4 lbs. |
PMG-12 | 4' 6" | 10' 9" | 3 | 6 lbs. |
PM-12 | 6' 6" | 11' 8" | 2 | 6 lbs. |
PM-18 | 7' 5" | 17' | 3 | 7 lbs. |
PM-24 | 8' 7" | 23' 3" | 3 | 9 lbs. |
VIDEOS
FEATURES
- All-in-one patented plug-in system allows you to install multiple types of fasteners to a variety of ceiling structures
- Includes: LMP Purlin Head, LMP Base and LMP Wire Plug (Welded)
- Perfect for applications that are unfit for scissor lifts such as stairwells or in between T-bar
- Improves safety by keeping your employees on the ground
- Faster installation times, no need to pre-wrap ceiling wire to the clips prior to installation
- Black anodized aircraft aluminum
- Lightweight and durable
- Made in USA
Components:

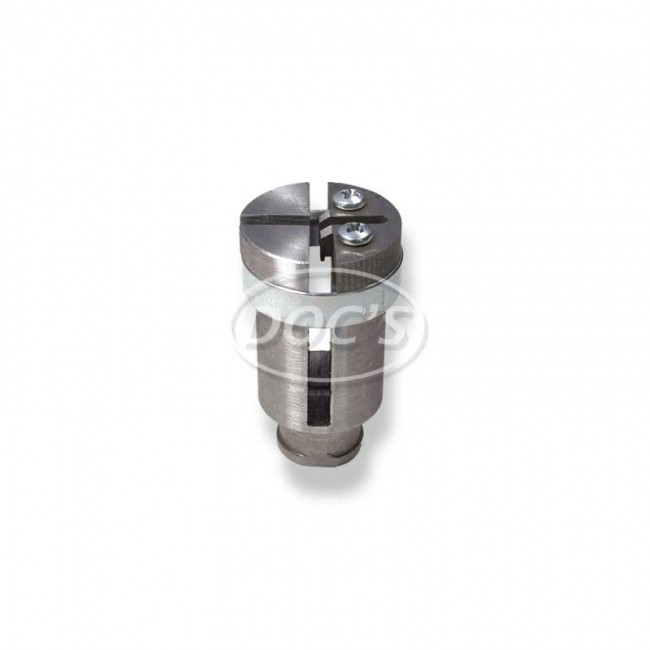

LMP Purlin Plug – Lagmaster® Plus Purlin Plug-in – Purlin Clip Installation Tool
PARTS
Wire Bale Pin
LM Head – Welded
LM Stud
LM Driver – Small
Two Stage Poles
Button Head Screws
LM Driver – Large
Three Stage Poles
