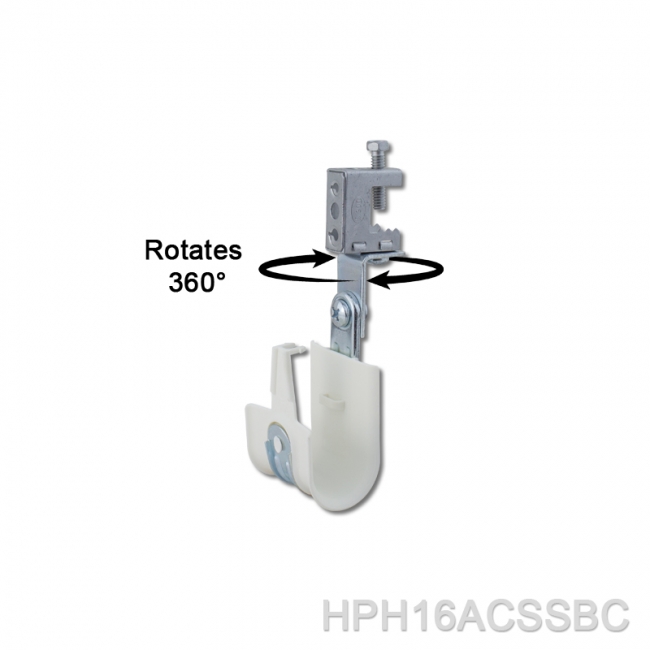

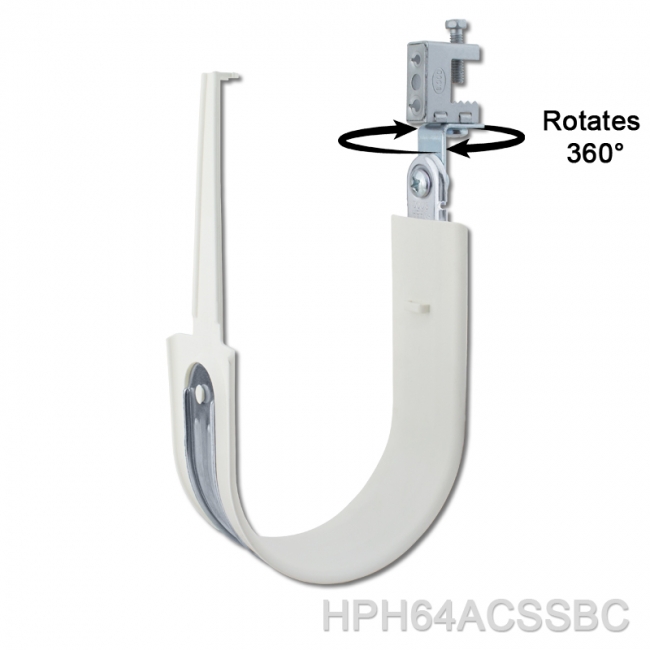

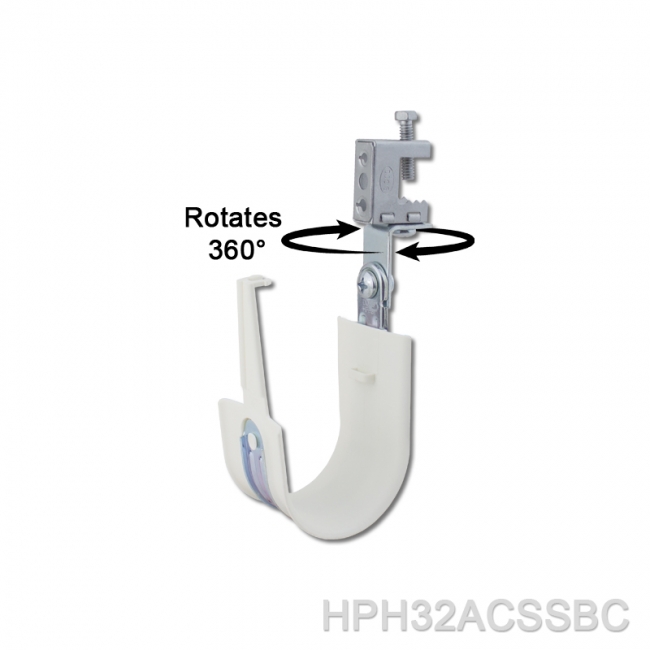

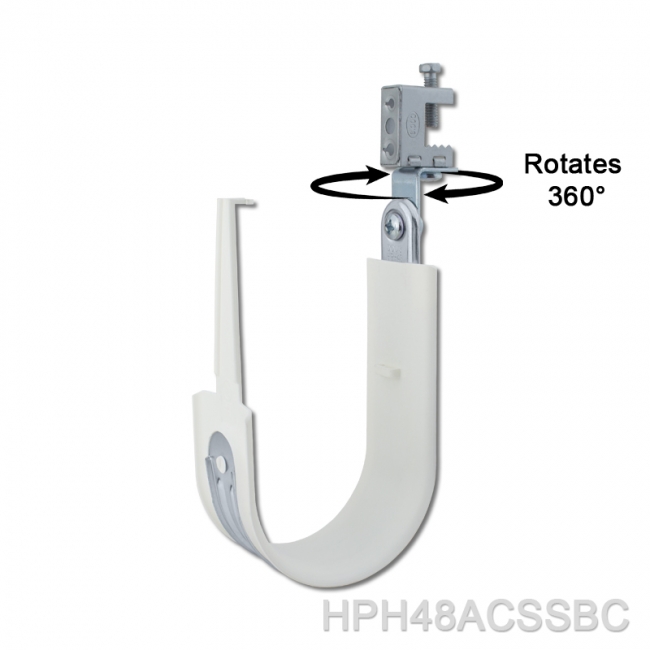

HPHACSSBC J Hook
We use a hybrid of metal and plastic components to offer the best of both worlds. The plastic component provides a two inch wide base support with a slick and burr free surface. The metal component provides a strong backbone. The combined J-Hook is UL listed, RoHS compliant, TIA compliant and is suitable for installation in plenum and air handling spaces.
One of the most innovative features of the HPH J-Hook is the built-in snap-lock retainer. This is far superior to clumsy retainer wires, cable ties or Velcro straps that require additional on-site installation.
Bend radius is an important factor in any high speed data cable installation. HPH J-Hooks offer the largest bend radius available at an average of 3.57 inches.
Consult with the cable manufacturer for proper installation guidelines.
- Built-in snap lock latch
- TIA compliant
- Plenum rated
- cULus listed attachments

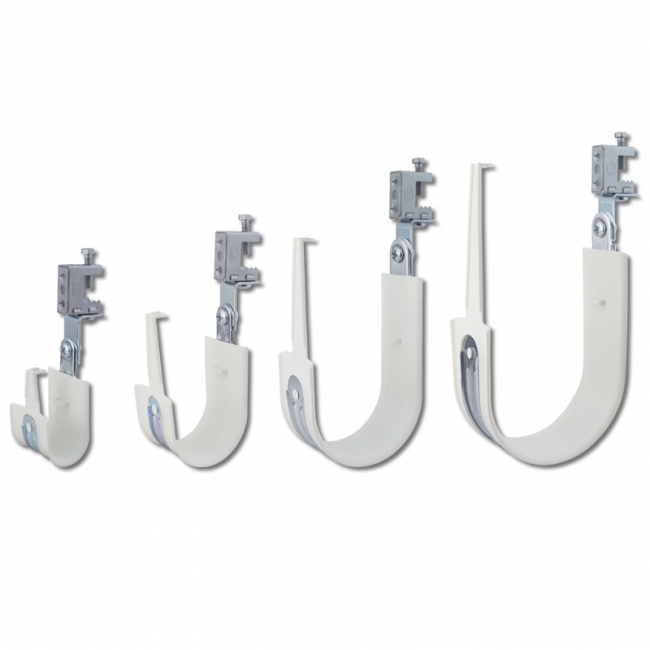

- Available in 1”, 2”, 3” & 4”
- Available in blue, red and black
- Assemble to Doc’s® attachments with a 1/4″-20 x 3/8″ bolt and nyloc nut
|CAT 5e |
Actual capacity may vary due to CAT cable outside diameter variances by type and manufacturer.
Consult with the cable manufacturer to insure the correct cable outside diameter is being used during calculations.
UL LOAD RATINGS – INCLUDES 3 TO 1 SAFETY FACTORS:
|Part No||UL Load Rating|
|Part No.||Package Qty.||Package Weight||UPC Code|
