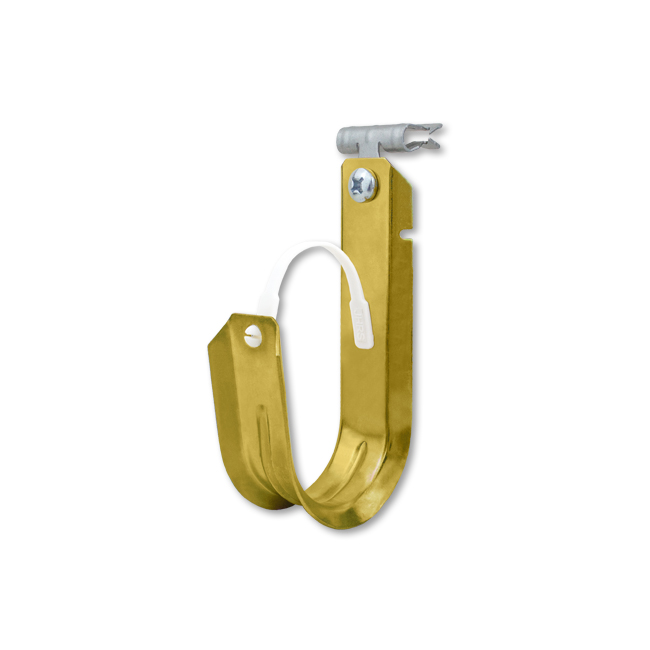

J-Hook with Knock-on Beam Clamp for Flanges 1/8 – 1/4″ Thick
Doc’s® J-Hooks provide support for all data comm and low voltage cables.
The J-Hook includes a spring steel knock-on beam clamp that allows you to attach the hook to flanges 1/8” – 1/4″ thick.
| Product Code | J-Hook Size | Load Capacity | Support Capacity |
|---|---|---|---|
| JH-12HOK24 | 3/4" | 17lbs | Capacity to hold up to 16 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 10 CAT 6 cables. |
| JH-21HOK24 | 1 5/16" | 17lbs | Capacity to hold up to 50 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 32 CAT 6 cables. |
| JH-32HOK24 | 2" | 17lbs | Capacity to hold up to 80 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 50 CAT 6 cables. |
| JH-64HOK24 | 4" | 50lbs | Capacity to hold up to 300 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 185 CAT 6 cables. |
RELATED VIDEO
PRODUCT SPECS
- Attachment: HOK-24 clip
- UL listed
- Finish = Yellow zinc chromate
- Material = Galvanized steel
- cULus® listed and complies with NEC® and TIA requirements for structured cabling systems
