J-Hook with Angle Clip & Steel Beam Clamp (1/8″x1/4″)

Doc’s J-Hooks provide support for all data comm and low voltage cables.

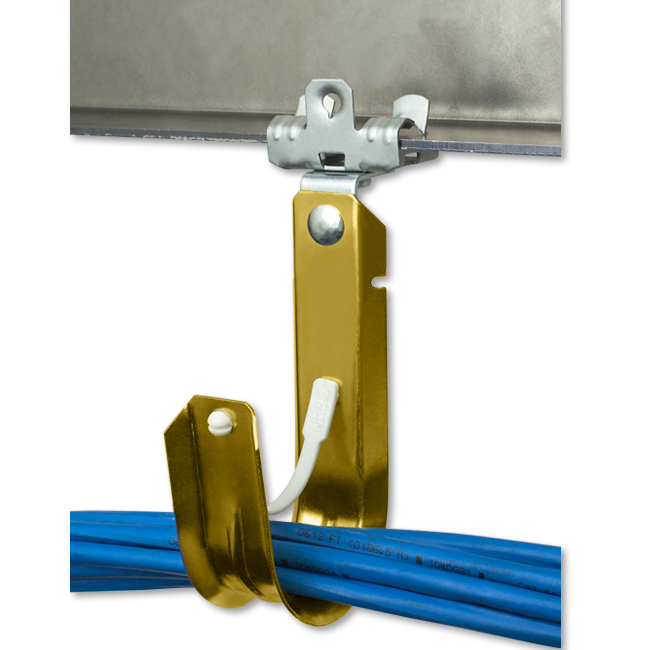

The J-Hook with Angle Clip & FM24 Steel Beam Clamp includes a spring steel knock-on beam clamp that allows you to attach the hook to flanges 1/8” – 1/4″ thick.

Product CodeJ-Hook SizeLoad CapacitySupport Capacity

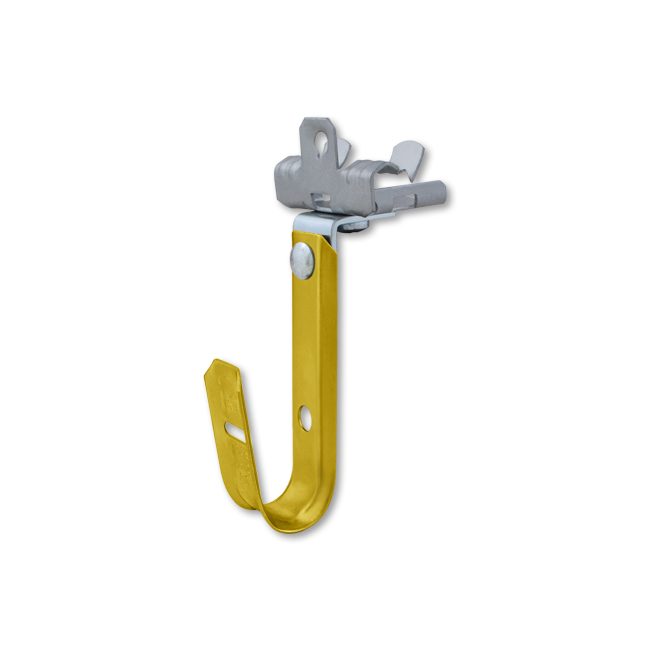

JH-12ACFM243/4"17lbsCapacity to hold up to 16 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 10 CAT 6 cables.

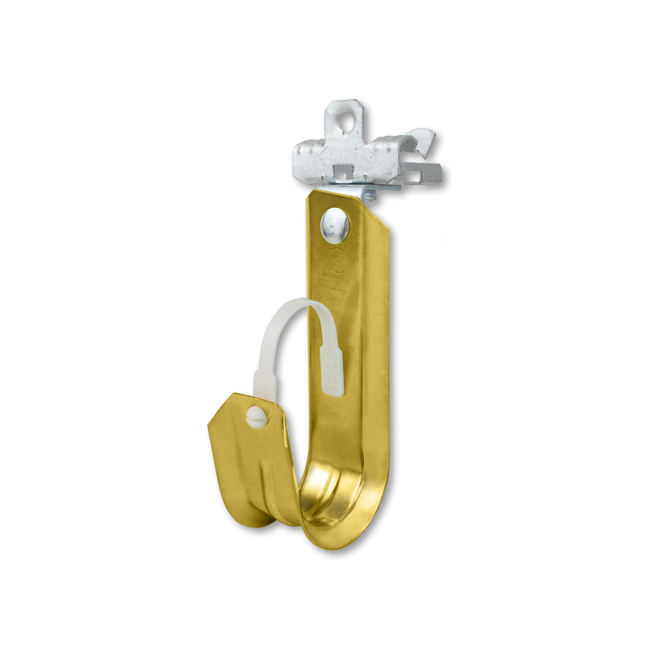

JH-21ACFM241 5/16"17lbsCapacity to hold up to 50 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 32 CAT 6 cables.

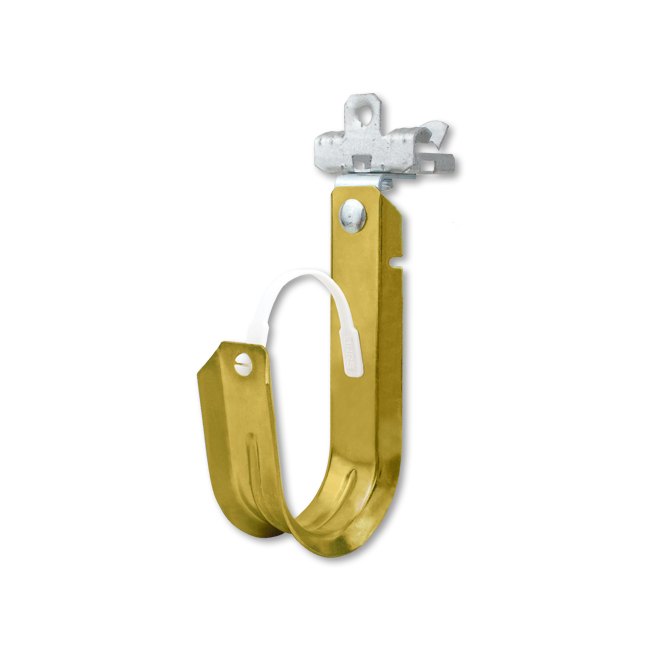

JH-32ACFM242"17lbsCapacity to hold up to 80 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 50 CAT 6 cables.

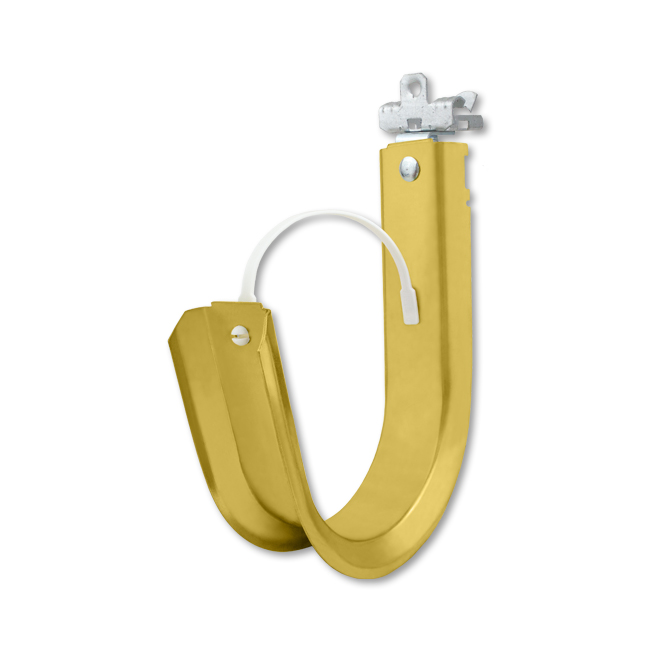

JH-64ACFM244"50lbsCapacity to hold up to 300 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 185 CAT 6 cables.

RELATED VIDEO

PRODUCT SPECS

  • Attachments: FM24 & HOCL-1 clip
  • UL listed
  • Finish = Yellow zinc chromate
  • Material = Galvanized steel
  • UL® listed and complies with NEC® and TIA requirements for structured cabling systems

DOCUMENTATION
