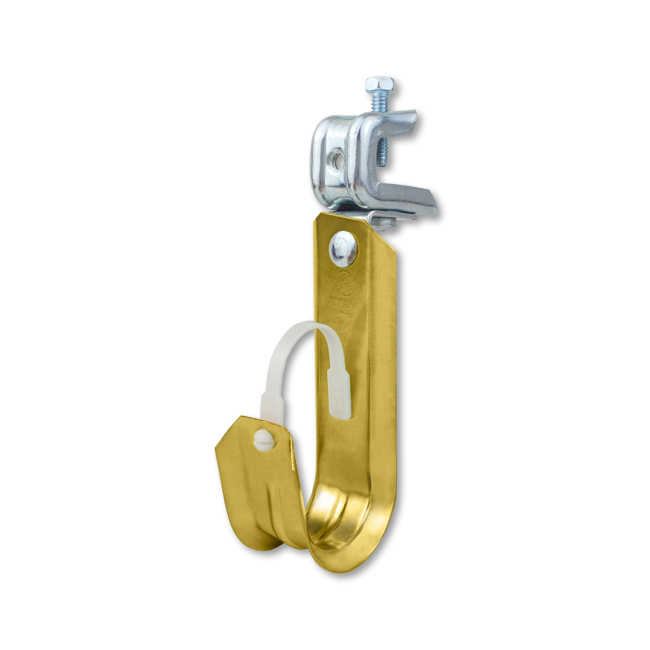

J-Hook with Angle Clip and Rotating Press Beam Clamp

Doc’s J-Hooks provide support for all data comm and low voltage cables.

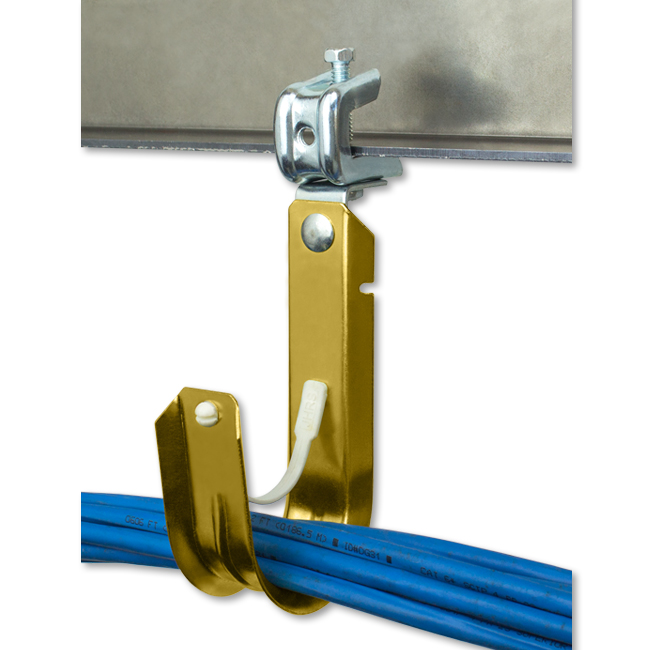

The J-Hook includes a 90° angle clip with screw in press beam clamp for flanges up to 1/2” thick. Rotates 360°

Product CodeJ-Hook SizeLoad CapacitySupport Capacity
JH-12ACPBC3/4"17lbsCapacity to hold up to 16 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 10 CAT 6 cables.
JH-21ACPBC1 5/16"17lbsCapacity to hold up to 50 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 32 CAT 6 cables.
JH-32ACPBC2"17lbsCapacity to hold up to 80 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 50 CAT 6 cables.
JH-64ACPBC4"50lbsCapacity to hold up to 300 4-Pair UTP CAT 5e or 2-strand fiber optic cables; or up to 185 CAT 6 cables.

RELATED VIDEO

PRODUCT SPECS

  • Attachment: 90° angle clip with screw in press beam clamp for flanges up to 1/2” thick. Rotates 360°
  • UL listed
  • Finish = Yellow zinc chromate
  • Material = Galvanized steel
  • cULus® listed and complies with NEC® and TIA requirements for structured cabling systems
