HPHPBC Series J Hook

HPH J-Hooks are specially designed to provide optimum support for high speed data cable, such as Cat 5e, Cat 6, Cat 6A, Cat 7 and fiber optic.

We use a hybrid of metal and plastic components to offer the best of both worlds. The plastic component provides a two inch wide base support with a slick and burr free surface. The metal component provides a strong backbone. The combined J-Hook is UL listed, RoHS compliant, TIA compliant and is suitable for installation in plenum and air handling spaces.

One of the most innovative features of the HPH J-Hook is the built-in snap-lock retainer. This is far superior to clumsy retainer wires, cable ties or Velcro straps that require additional on-site installation.

Bend radius is an important factor in any high speed data cable installation. HPH J-Hooks offer the largest bend radius available at an average of 3.57 inches.

Consult with the cable manufacturer for proper installation guidelines.

VIDEOS


FEATURES

  • Built-in snap lock latch
  • TIA compliant
  • Plenum rated
  • cULus listed attachments

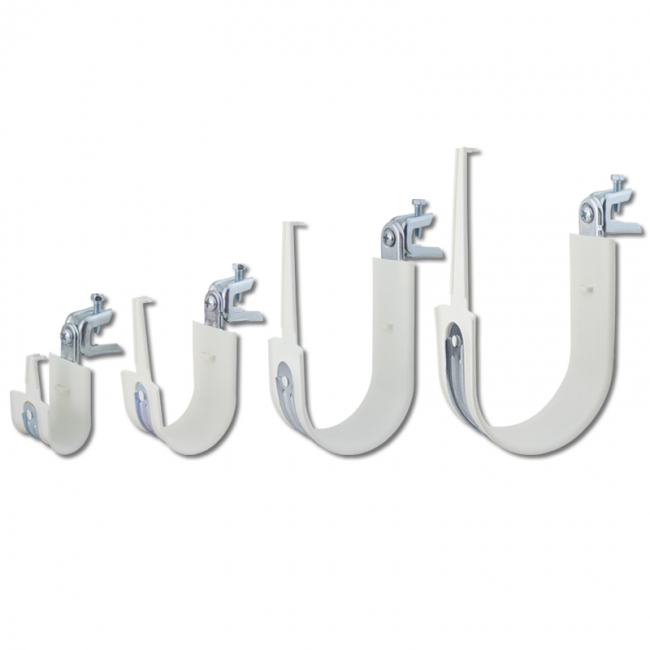

  • Available in 1”, 2”, 3” & 4”
  • Available in blue, red and black
  • Assemble to Doc’s attachments with a 1/4″-20 x 3/8″ bolt and nyloc nut

SPECS

CABLE CAPACITIES:
Part No.AreaHook
Diameter
CAT 5e
Capacity
CAT 6
Capacity
Cat 6a
Capacity

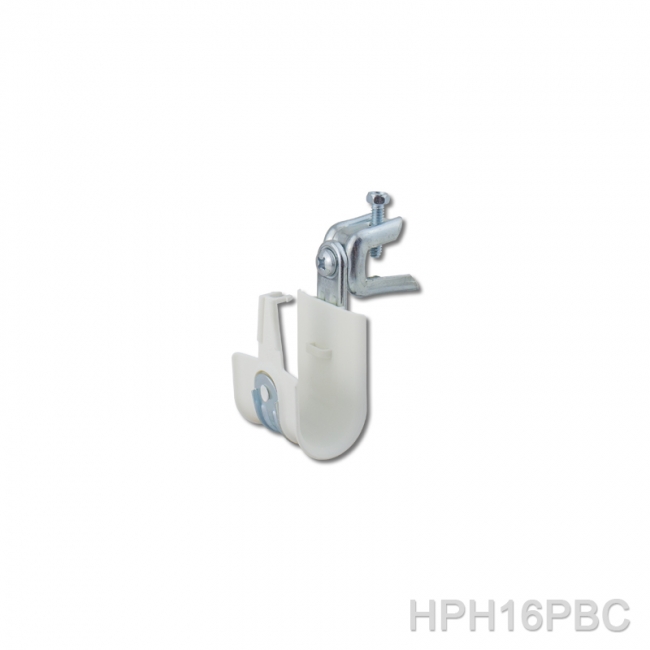

HPH16PBC1.07 in21”201510

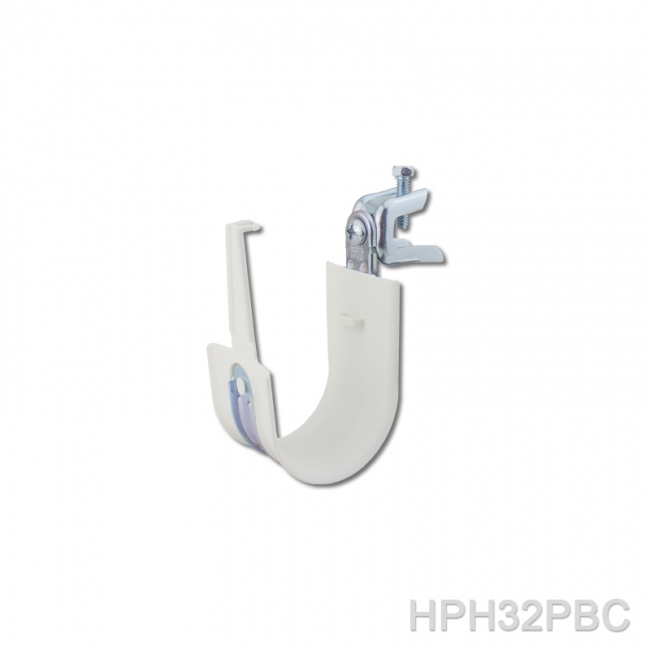

HPH32PBC3.97 in22”906035

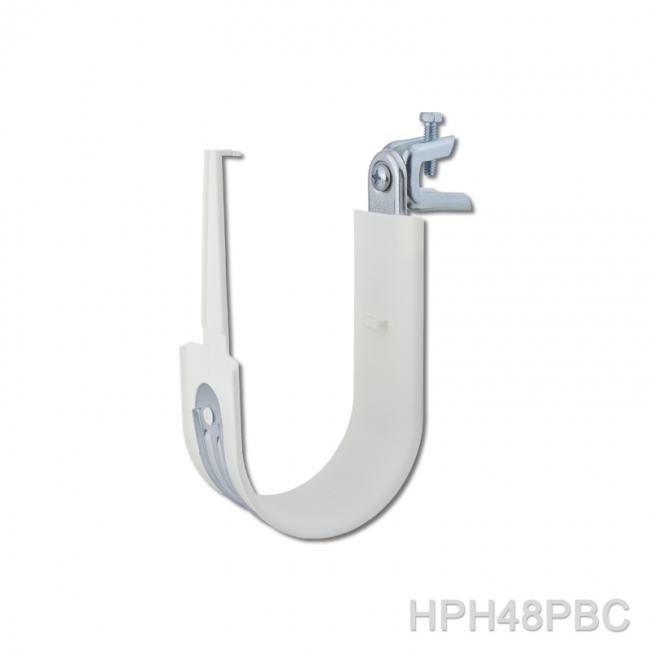

HPH48PBC9.26 in23”20015080

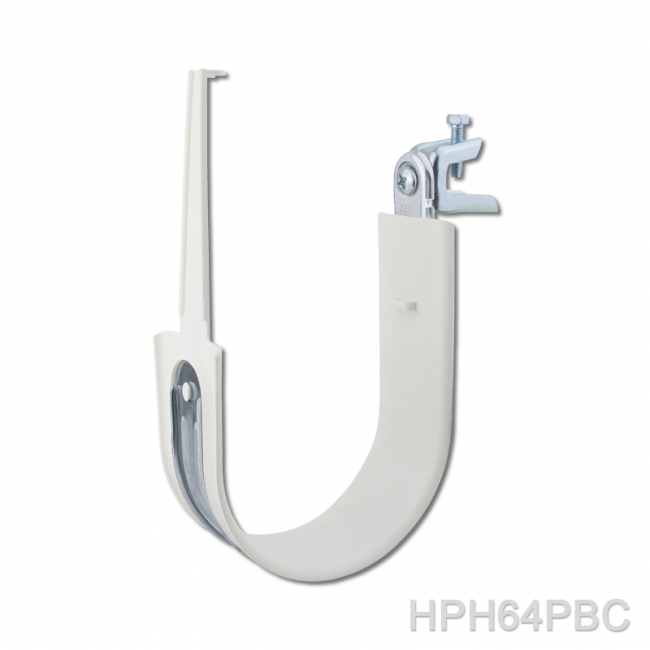

HPH64PBC15.48 in24”330220140
Cable capacity is calculated based on a 70% fill rate.
Actual capacity may vary due to CAT cable outside diameter variances by type and manufacturer.
Consult with the cable manufacturer to insure the correct cable outside diameter is being used during calculations.

UL LOAD RATINGS – INCLUDES 3 TO 1 SAFETY FACTORS:

Part NoUL Load Rating
LBS.N
HPH16PBC2088.96
HPH32PBC1775.62
HPH48PBC2088.96
HPH64PBC1775.62

PACKAGE INFORMATION:

Part No.Package Qty.Package WeightUPC Code
HPH16PBC 256 lbs.707129861726
HPH32PBC 257 lbs.707129861917
HPH48PBC 2512 lbs.707129861108
HPH64PBC 2514 lbs.707129861238
